Products > drawing die and wire measurement + Measuring microscopes, Image processing > DMS-M: Low Cost high accurate Drawing Die Measuring System

Drawing Die Measuring System with motorized, software controlled focusing



Get in touch >

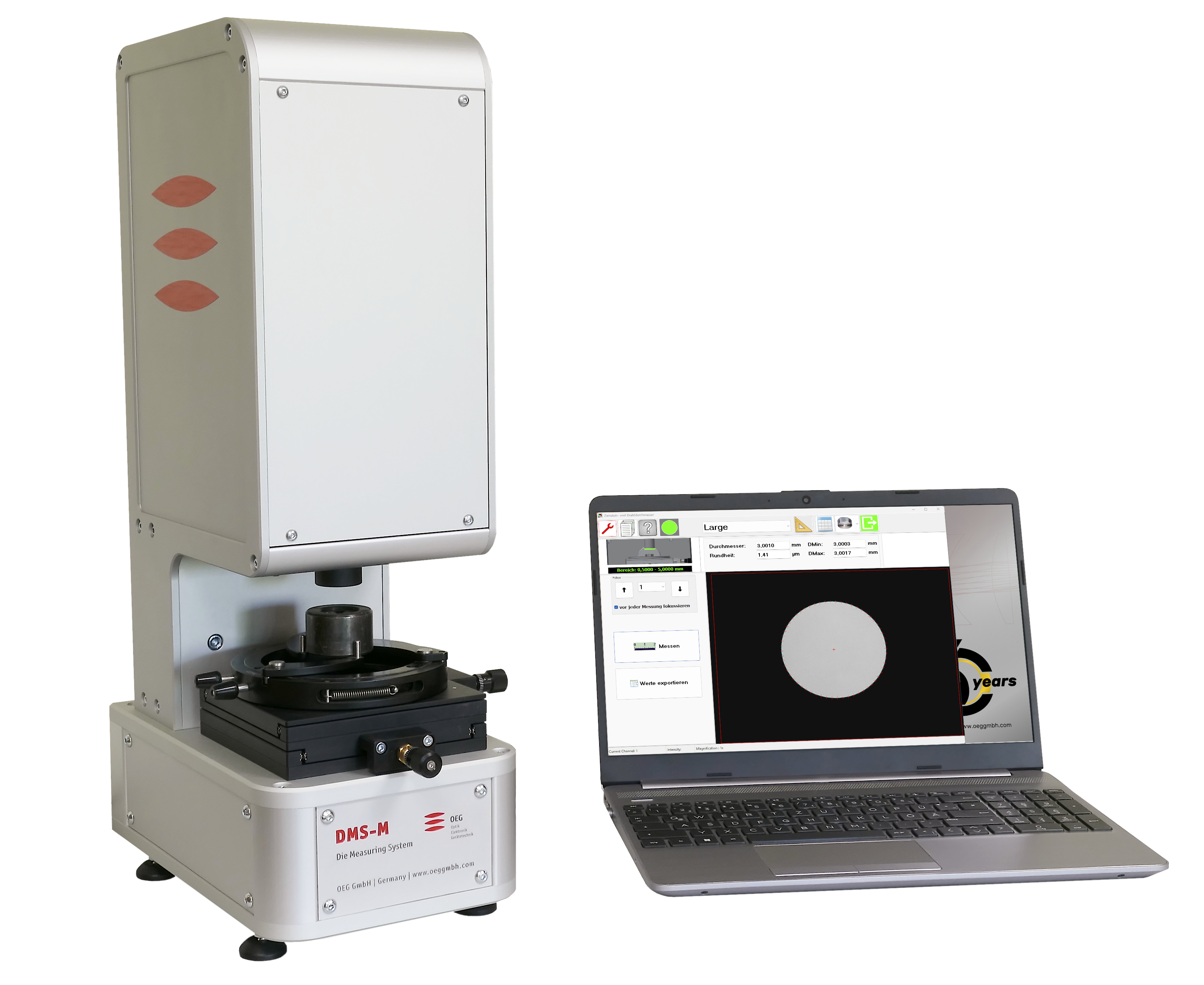

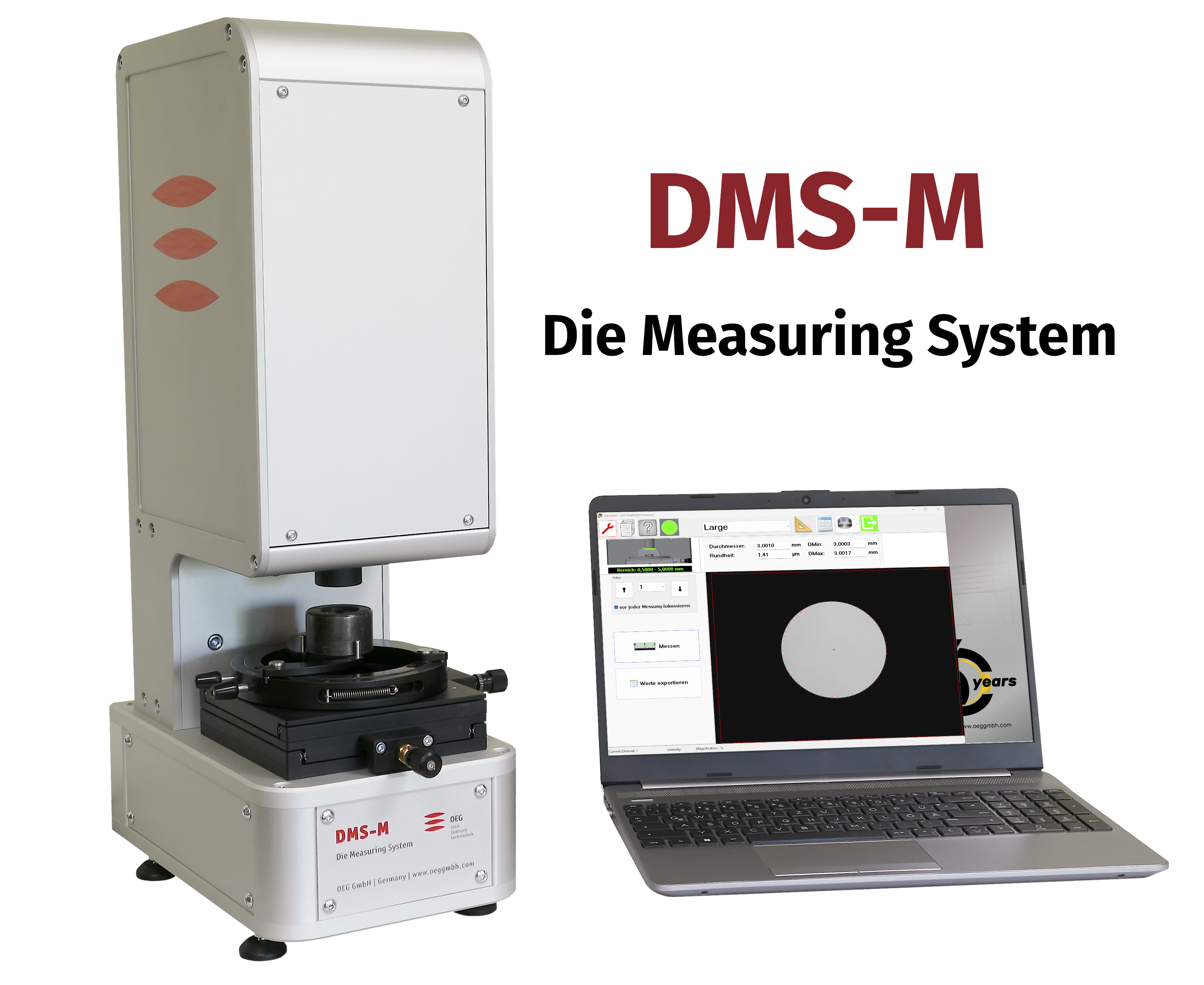

DMS-M: motorized drawing die measuring system

Features

-motorized, high accurate autofocusing

-1 measuring lens

-choice of 5 lenses depending on the diameter range

-lenses cover a diameter meauring range from 0,015mm to 15mm.



Details about measuring lenses and measuring ranges you can find in the PDF file.







PDF

Download PDF DMS-M
